此文章来自网络,挺有意思,存下。

原理:
图片旋转 transfrom:rotate(120deg);
溢出隐藏 overflow:hidden;
我们要用三层div来实现旋转效果

第一次 rotate(120deg) 第二次 rotate(-60deg) 第三次 rotate(-60deg)
此时 正好div归正 我们的图片放在第三层里面 第一层和第二层纯属是为了实现六边形的
图像剪切成六边形定有溢出的地方设置溢出隐藏 overflow:hidden
div的宽度必须满足4:5 不然得到的就不是六边形了

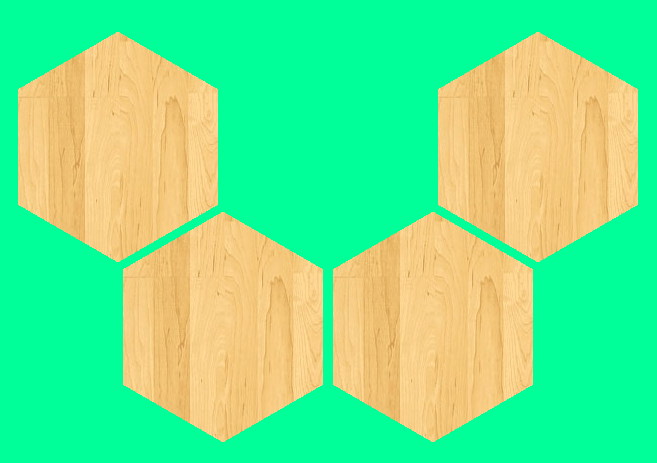

效果展示

from clipboard

html部分


<!DOCTYPE HTML>
<html>
<head>
<meta http-equiv="Content-Type" content="text/html; charset=utf-8">
<title>六边形图片展示</title>
<link href="css/index.css" rel="stylesheet" type="text/css">
</head>
<body>
<!-- section 部分  container 容器 -->
<section class="container">
 <div class="conbox-1">
  <div class="conbox-2">
   <div class="conbox-3">
    <img src="images/a1.jpg">
    <div>风景</div>
   </div>
  </div>
 </div>

  <div class="conbox-1">
  <div class="conbox-2">
   <div class="conbox-3">
    <img src="images/a2.jpg">
    <div>风景</div>
   </div>
  </div>
 </div>

  <div class="conbox-1">
  <div class="conbox-2">
   <div class="conbox-3">
    <img src="images/a3.jpg">
    <div>风景</div>
   </div>
  </div>
 </div>

  <div class="conbox-1 margin-top margin-left">
  <div class="conbox-2">
   <div class="conbox-3">
    <img src="images/a4.jpg">
    <div>风景</div>
   </div>
  </div>
 </div>

  <div class="conbox-1 margin-top">
  <div class="conbox-2">
   <div class="conbox-3">
    <img src="images/a5.jpg">
    <div>风景</div>
   </div>
  </div>
 </div>

</section>
</body>
</html>
css部分



@charset "utf-8";
* {
    margin:0; /* 外边距 */
    padding:0; /* 内边距 */
}
body {
    background-color:#0F9; /* 背景颜色 */
}
.container {
    width:650px; /* 宽 */
    height:430px; /* 高 */
    margin:100px auto; /* 上外边距和下外边距100 左右边距自动 */
}
.conbox-1 {
    width:200px;
    height:250px;
    float:left; /* 左浮动 */
    margin-left:10px; /* 左边距10 */
    overflow:hidden; /* 溢出隐藏 */
    transform:rotate(120deg);
    /* 改变外形 旋转120deg */
}
.conbox-2 {
    width:100%;
    height:100%;
    overflow:hidden;
    transform:rotate(-60deg);
}
.conbox-3 {
    width: 100%;
    height: 100%;
    overflow: hidden;
    transform:rotate(-60deg);
    position: relative; /* 位置 : 相对的 */
}
.conbox-3 > div { /* >div 表示 div是.conbox-3的直接子选择器 */
    width:100%;
    height:100%;
    position:absolute; /* 位置 : 绝对的 */
    top:0;
    left:0;
    opacity:0; /* opacity 不透明的 */
    line-height:250px; /* 线高度 */
    text-align:center; /* 文本居中 */
    color:#0FF;
    cursor:pointer; /* 光标 : 指针 */
    background:url(../images/s.png);
    /* 背景图片 */
    transition:opacity 0.3s;
    /* 过渡 : 不透明度时间0.3s */
}
.conbox-3:hover > div {
    /* 当光标移入 不透明度改变为1 */
    opacity:1;
}
.margin-top {
    margin-top:-70px;
}
.margin-left {
    margin-left:115px;
}
.clear{
    clear: both;
}


版权声明:本篇文章来源于网络。 来源链接
